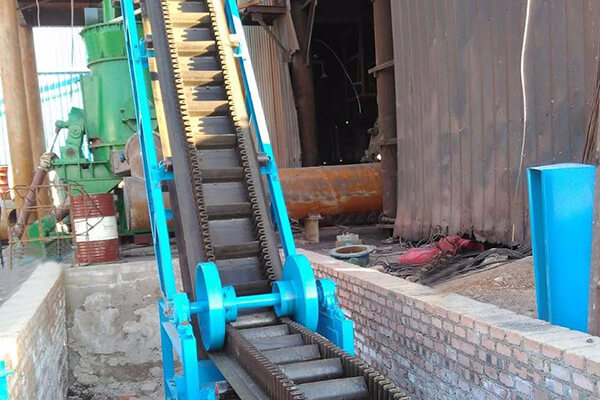

The motorized pulley is a new type of driving device which places the motor and reducer inside the roller, which has mainly been used on heavy belt conveyor and portable belt conveyor, as a replacement of the separate driving device of the traditional motor and reducer beyond the head roll. In recent years, according to the needs of some special occasions of the corrugated sidewall belt conveyor, there is a kind of motorized pulley between the separated type drive and the motorized pulley drive, with the reducer device inside the roller and the motor outside the roller, which has the characteristics of simple and compact structure, good sealing, easy to use, safe and reliable operation.
When the device is running normally, the motor directly drives the reducer inside the roller to drive the motorized pulley to rotate. The oil scraper on the inner wall of the roller carries the oil injected into the roller to lubricate and cool motor, gear and bearing units when the rotating rollers are rotated. The malfunctions of the motorized pulley of corrugated sidewall belt conveyor mainly manifest in:
1.When the shaft wear and groove, the oil seal of motorized pulley will leak after a period of operation.
2.The of fracture failure for motor shaft.
3.The connecting shaft of key groove of motor shaft and reducer is worn.

The solution
1.The motor of motorized pulley is installed with fixed bearing. The shaft of the high-speed reducer of the reducer connected with the motor shaft not only bears the torque, but also bears the bending moment caused by the self-weight of the motor when a roller rotates. When the high-speed shaft of the reducer is different from that of the motor, will increase the connecting axial load, increase the bending moment on the shaft, and the long-term operation will cause shaft breakage and wear. The motor of motorized pulley is equipped with steel bearing to solve the problem. Ensuring the concentricity of reducer shaft and motor shaft, and making the rotating center line of roller perpendicular to the axis of corrugated sidewall belt conveyor during installation.
2.Changing the connection mode of motor and roller reducer. The transmission mode of motor and motorized pulley of corrugated sidewall belt conveyor is directly-connected transmission, the motor shaft and the high-speed shaft of the reducer are connected by the key. The motorized pulley is the only active roller of the whole belt. When the motor starts up, the motor shaft torque is larger, and the motor will generate larger vibration. Because the wavy belt belongs to indirect frequent operation, the motor shaft is often worn or even broken in the process of continuous starting. We have improved the connection mode of the corrugated belt motor and motorized pulley, which makes the corrugated belt has a longer service life and convenient maintenance. First, according to the size of reducer input shaft of motorized pulley process a coupling shaft. Second, selecting the appropriate coupling transmission mode. There are such commonly used transmission forms as friction drive, chain drive, gear drive, belt drive, turbine and worm drive, crank shaft drive, pneumatic drive, hydraulic drive and coupling drive.
3.Choosing superior and standard oil seal, reasonable installation and frequent maintenance. The oil seal works by forming a sealed contact ring of the oil seal lip under the action of radial pressure, penetrating into the oil seal cutting edge of the oil and forming an extremely thin oil slick between the rotary shaft under the action of lubricating oil pressure, and forming a covert beside spindle and oil seal cutting edge under the action of the surface tension of the oil to prevent the oil leak. The basic knowledge of identifying the merits and demerits of oil seal should be mastered, and the superior and standard oil seal should be selected. The surface finish of shaft should be ensured before installation, the surface rust and rag of the shaft should be polished smoothly with abrasive cloth, and the oil seal and the shaft should have a certain amount of interference.
