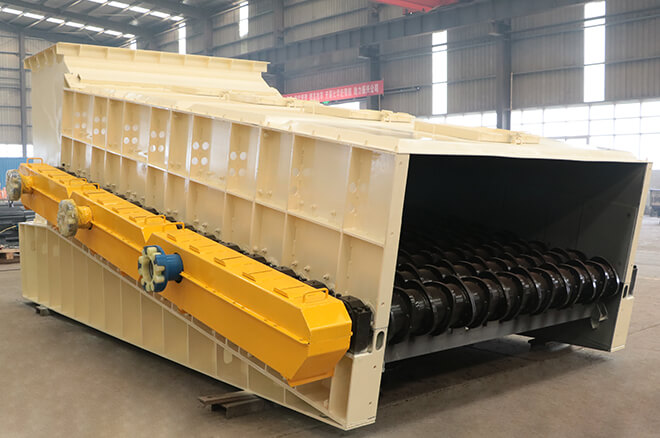

The roller screen is an efficient screening equipment, the screening area is composed of the main bearing of each roll rotating in the same direction, to achieve material separation and transportation. Roller screen, also known as Wobble Feeder, Disc Screen, It is suitable for a variety of materials and can handle wet and sticky materials. Compared with the traditional vibrating screen, the roller screen is not easy to block, which can ensure the processing capacity and screening effect.
With its outstanding advantages, our roller screens are widely used in coal, chemical, mining, metallurgy and other industries.
Address: Middle of Xinchang North Line, Xinxiang City, Henan Province, China
WORKING PRINCIPLE
Share:
The screen surface of the roller screen is composed of a number of parallel arranged screen shafts equipped with screen sheets, which are driven by a transmission device to rotate the screen shaft, and the rotation direction is the same as the material flow direction. The gap between the screen shaft and the screen sheets forms the screen hole, the material less than the screen hole is subject to the action of its own weight and the rotating force of the screen shaft, and becomes the material under the screen through the screen hole, and the material larger than the screen hole continues to move forward along the screen surface to become the material on the screen, and finally realizes the classification of the material. Electrical and mechanical overload protection is provided to prevent material from jamming the screen shaft. The screening particle size needs to be adjusted according to the user's requirements, the clearance of the screen shaft and the size of the screen sheet.

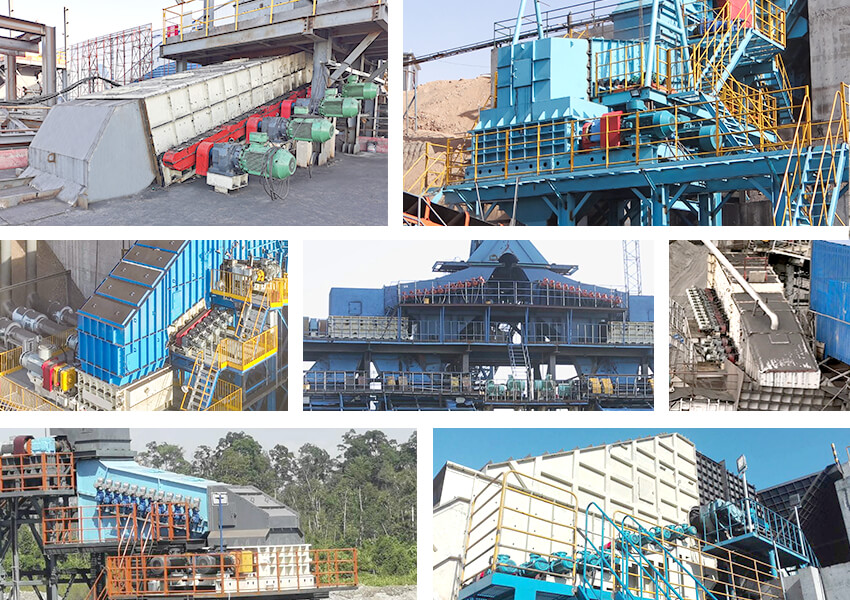

APPLICATION
Roller screen is widely used in the screening of solid materials in coal, electric power, metallurgy, cement, sand aggregate, solid waste
and other industries.
SPECIFICATIONS
Model
Screen Width (Mm)
Controlled Axis/Base
Graded Particle Size (Mm)
Drive Power (Kw)
Handling Capacity(T/H)
GZS1208
1200
8
10-100
15
150-300
GZS1412
1 400
12
10-100
2x 15
200-500
GZS1618
1600
18
10-100
3x 18.5
400-800
GZS1824
1 800
24
10-100
4x22
600- 1000
GZS2024
2000
24
10-100
4x30
800-1200
GZS2430
2400
30
10-100
5x37
1000-1800
Note: The number of rolls can be customized according to customer requirements.
